Signal junction boxes are the products we at FREE THE TONE have custom-made most so far. A great many musicians use these products on their pedalboards or in their racks. To provide highest sound quality and user-friendliness, FREE THE TONE makes full use of its expertise and know-how gained from its experience of more than 10 years in designing and building custom products.
By collecting inputs and outputs of the pedalboard into one place, the following merits can be obtained.

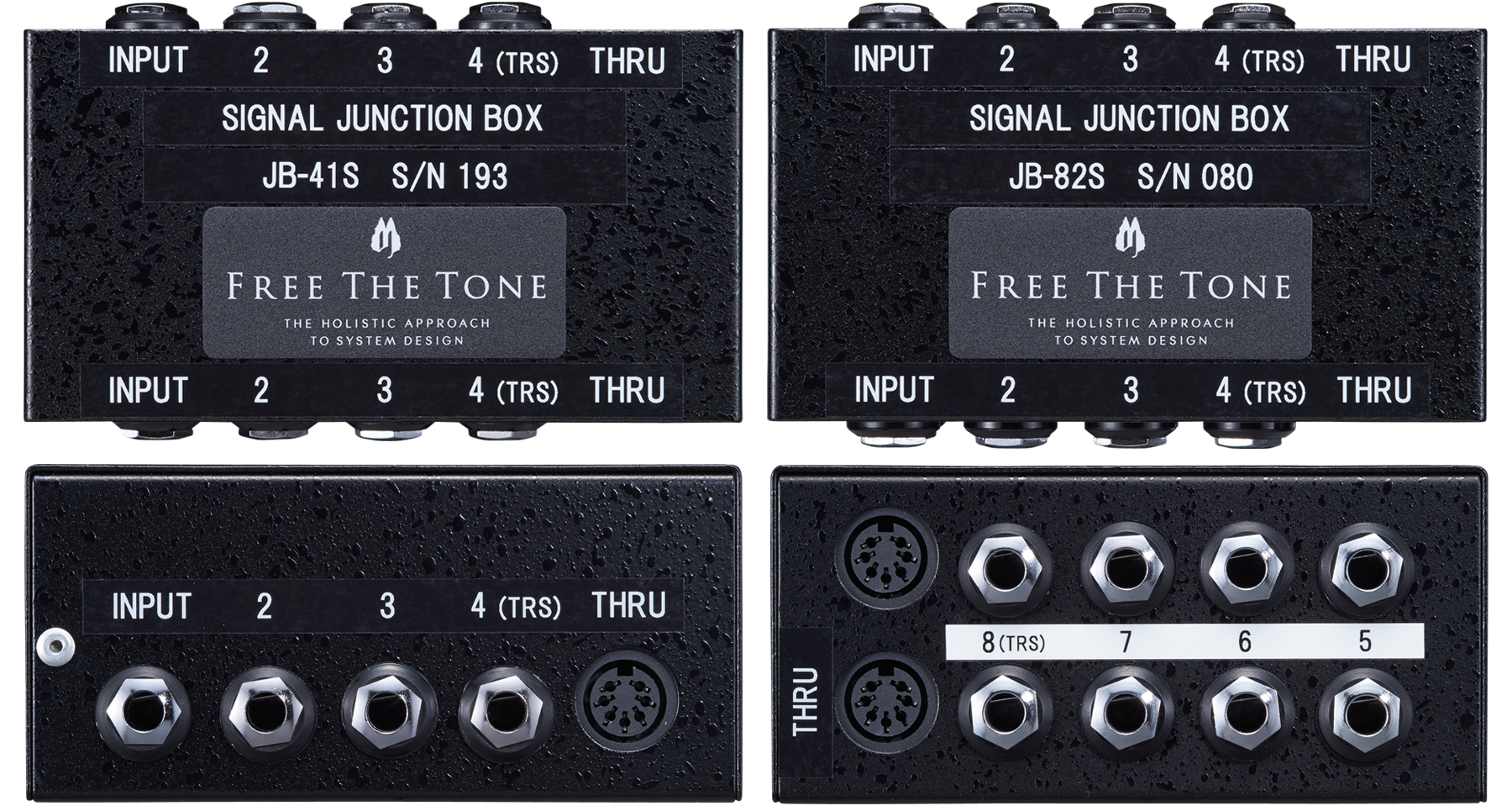

One out of the four lines on the JB-41S can be used for balanced audio signal connection or amplifier control signal connection using a stereo plug.
Two out of the eight lines on the JB-82S can be used for balanced audio signal connection or amplifier control signal connection using a stereo plug.

FEATURES

  • Wiring between the devices is simplified and setup time can be shortened.
  • Damage to cables and plugs can be reduced by using a junction box as an interface rather than connecting cables directly to effects units or similar devices packed in a narrow space within a pedalboard.
  • Depending on where this product is positioned, the INPUT jack on either side can be used as an input.

SPECIFICATIONS

JB-21

  • Terminals: 4× standard 1/4" phone jacks (mono), 2× DIN 7-pin connectors (for MIDI/ARC-3 linking)
  • Dimensions: 100W × 55D × 34H mm (incl. protuberances such as jacks)
  • Weight: approx. 210 g
  • Accessories: warranty card, Web Access Card

JB-41S

  • Terminals: 8× 1/4" phone jacks (6× mono and 2× stereo), 2× DIN 7-pin connectors (for MIDI/ARC-3 linking)
  • Dimensions: 120W × 77D × 56H mm (incl. protuberances such as jacks)
  • Weight: approx. 370 g (excl. accessories)
  • Accessories: warranty card, Web Access Card, 2× L-shape brackets, 4× wood screws, 4× binding head screws

JB-82S

  • Terminals: 16× 1/4" phone jacks (12× mono and 4× stereo), 4× DIN 7-pin connectors (for linking MIDI/ARC-3)
  • Dimensions: 120W × 77D × 56H mm (incl. protuberances such as jacks)
  • Weight: approx. 450 g (excl. accessories)
  • Accessories: warranty card, Web Access Card, 2× L-shape brackets, 4× wood screws, 4× binding head screws
