CU-6550STD/CU-6550LNG

CU-6550STD/CU-6550LNG INSTRUMENT CABLE

For “the sound that makes you want to keep on playing”

CU-6550STD/CU-6550LNG
Model CU-6550STD/CU-6550LNG
Type INSTRUMENT CABLE
Plug type Straight/L-angle (S/L)、Straight/Straight (S/S)
Length 2m/3m/4m/5m
The cables that FREE THE TONE has been making as custom cables on a limited basis for professional musicians are now available to everyone as the CU-6550. The same three master cable craftsmen who have been fabricating cables for professional musicians in the past will now provide you with the same quality cables. It is well known that the sound and durability of cables is affected by processing and fabrication technology. FREE THE TONE achieved the CU-6550 cable by individually pursuing relevant points such as sound quality, durability, flexibility, weight, etc.
This is a warm sounding cable for instrument use with amazing clarity that transmits all the nuances of the vibration of your strings. The basic concept in developing this cable was “The sound that makes you want to keep on playing!” You will experience a sound that is as close to the raw sound of your guitar or bass as possible. All of the characteristics of your guitar or bass will be maintained while at the same time, any harsh electrical noise picked up by the pickups in your instrument will be eliminated.
CU-6550STD S/S

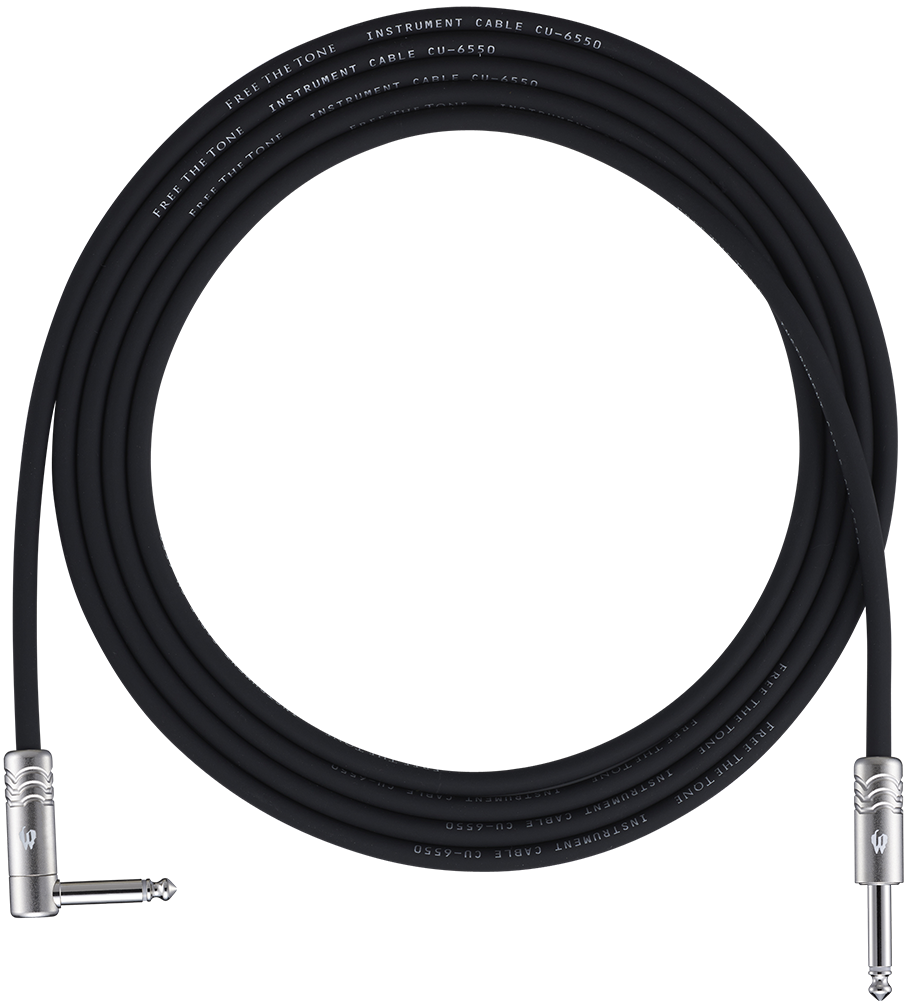

CU-6550STD S/L
CU-6550LNG S/S

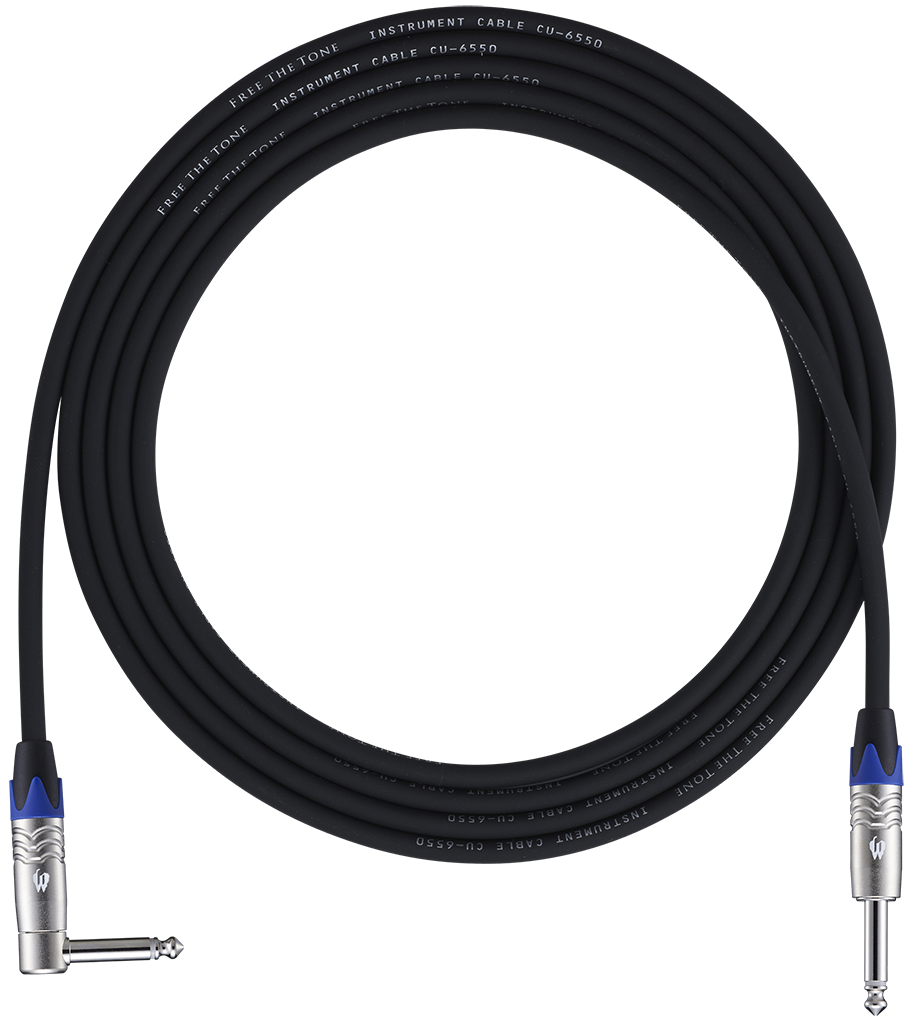

CU-6550LNG S/L

Package

Plug type

Straight/L-angle (S/L)、Straight/Straight (S/S)

Length

2m/3m/4m/5m

FEATURES

  • We have prepared both a long plug type and a standard plug type so that you can select whichever one is more suitable for your own use. The long plug type is ideal for a Stratocaster deep-hole type jack. The standard type is a more universal plug for any guitar/bass.
  • The plug used on the CU-6550 has unique wave shape grooves in its body to provide proper hold for plugging/unplugging.
  • The inside of the plug also has a special shape unique to the FREE THE TONE product. The tip (hot) inside the plug has a tongue shape connection terminal and a large ground contact area is provided for connecting the core and ground wires, and as a result, the sound quality and intensity is improved compared with other plugs.
  • The sleeve to which the shield is connected has a blade to clamp the cable firmly and this reduces the possibility of breakage.

SPECIFICATIONS

Conductor Size 0.25mm²
Construction 50/0.08A OFC (No/mm)
Insulation Thickness 1.63mm(±0.05)
Inner Jacket Thickness 0.25mm
Shield Diameter 5.00mm
Jacket Thickness 0.75mm(±0.10)
Diameter 6.50mm
Maximum conductor resistance(20˚C) 100≧(Ω/km)
Capacitance(1kHz) Approx.80 (pF/m)
